What Is a Nespresso Coffee Capsule Filling Machine?
A nespresso coffee capsule filling machine is an automated system that doses ground coffee into compatible capsules and seals them with aluminum lids or film. A complete coffee capsule filling sealing machine can combine capsule feeding, servo-controlled dosing, nitrogen flushing, lid placement, heat sealing, and finished-capsule discharge. HIJPACK’s system uses PLC and HMI controls, no-capsule-no-filling protection, no-lid-no-sealing detection, and a removable hopper for easier cleaning. By integrating these operations, the machine helps coffee producers improve filling consistency, reduce material waste, and maintain stable output across different production volumes.
Features of HIJPACK’s Nespresso Coffee Filling Sealing Machine
HIJPACK's Nespresso capsule filler is designed for high efficiency and precision. Key features include:
Advanced Control System: Based on SIEMENS/OMRON PLC and HMI control, automatic pneumatic operation.
One-Key Operation: Real-time monitoring for ease of use.
High Precision Filling: The Servo motor ensures high-speed positioning with a filling error of less than 0.1 grams.
Safety Features: Protection acrylic dust cover, no capsule no filling, no lid no sealing, and air cylinder retraction detection.
Stability: Air pressure detection, voltage phase protection, and air tank buffer for stable production.
Easy Maintenance: Hopper is easy to remove and clean.
Mobility: Equipped with wheels for convenient movement.
Nitrogen Flushing: Adopted with nitrogen flushing three times for product freshness.
What are good Nespresso capsules?
Consistent Weight: Ensures a uniform taste experience for the customer.
Freshness: Utilizes high barrier materials and a high concentration of nitrogen filling to extend the shelf life of the coffee.
Secure and Attractive Closure: A well-sealed capsule enhances the perceived quality of your brand and products.
HIJPACK offers customization of Nespresso coffee capsule packing machines tailored to the specific size, shape, and material of your capsules. Each machine undergoes thorough testing to guarantee stable and exceptional quality. You are invited to bring your coffee and other powder products to our factory for a direct trial.
Hot Nespresso Capsule Filling Machine For Sale
|
|

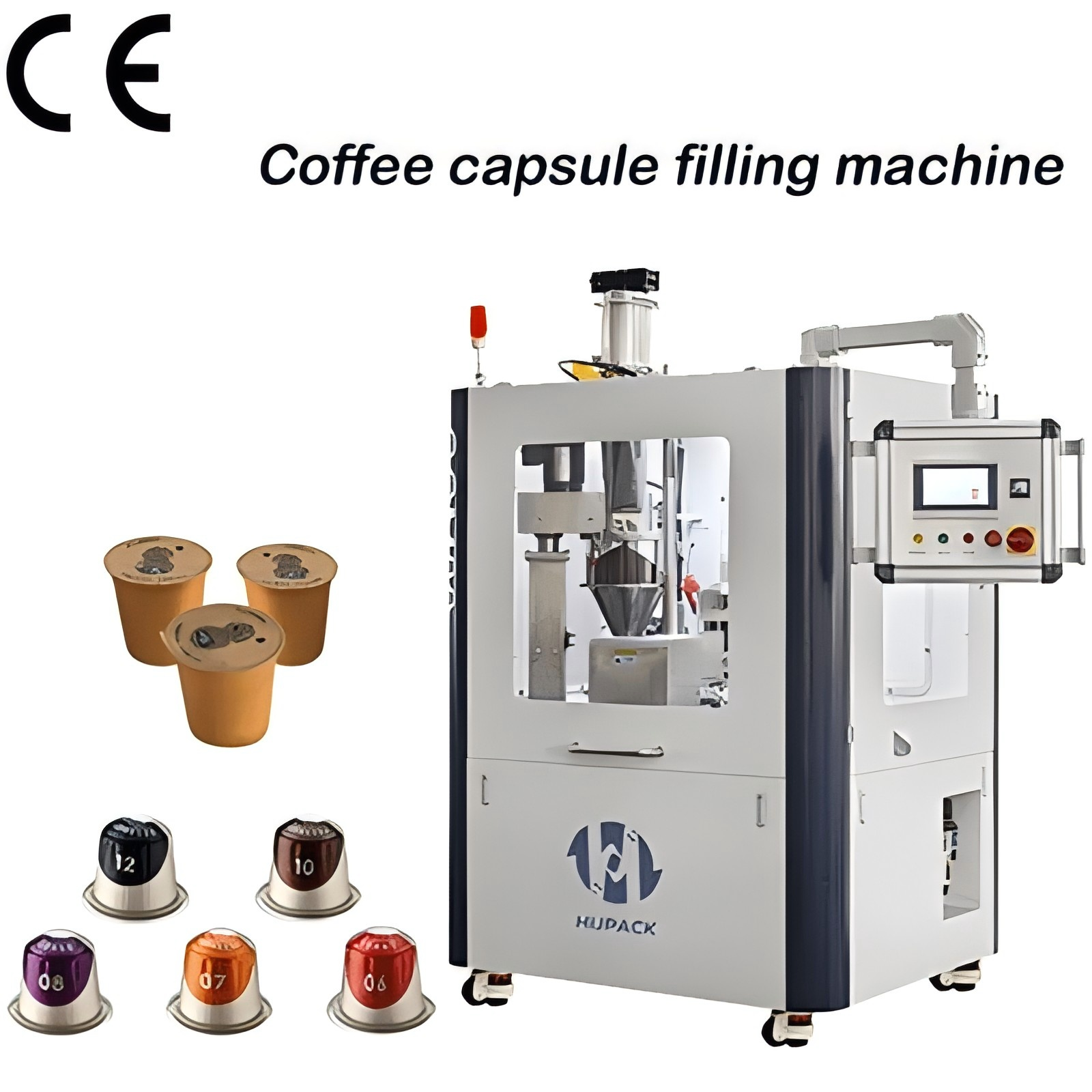

CF80 Coffee Capsule High Speed Canning SealingMachine
Outer Diameter: 37-54 mm Height: 28-50 mm Model: CF80 Productivity: 3600 pills/h Cup Size: Sealing Film: 37-54 mm Power Supply: Single phase 220V Main Motor Power: 0.75KW Total Power: 2.5KW Air Pressure: 0.6-0.8MPA Air Consumption: 0.4 m³/h Dimensions: 1300×1100×1900 mm Weight: 1500 KG
|  |

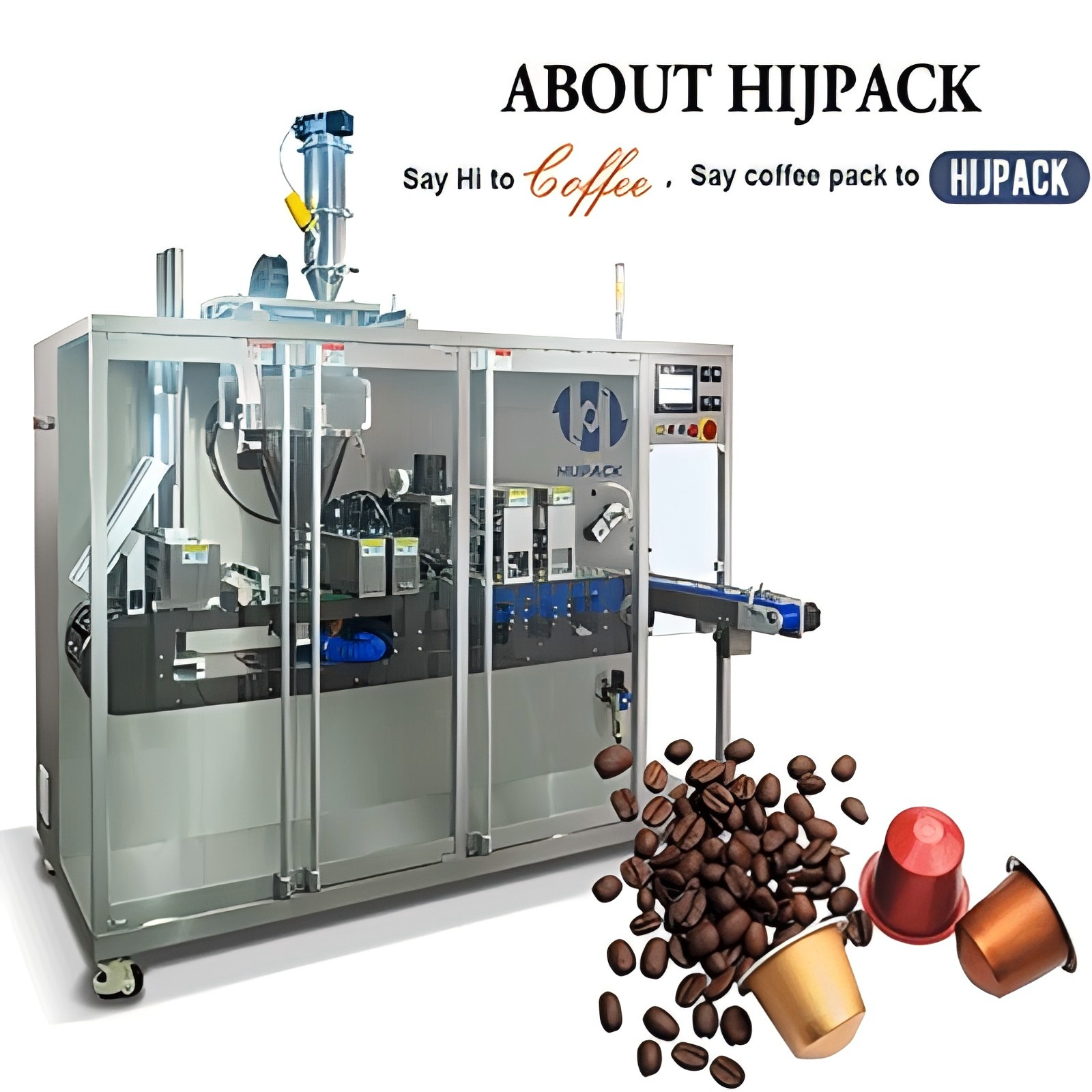

Outer Diameter: 37-54 mm Height: 28-50 mm Model: CF120 Productivity: 4200 pills/h Cup Size: Sealing Film: 37-54 mm Power Supply: Single phase 220V Main Motor Power: 0.75KW Total Power: 2.5KW Air Pressure: 0.6-0.8MPA Air Consumption: 0.4 m³/h Dimensions: 1300×1100×1900 mm Weight: 1500 KG |  |
|  |

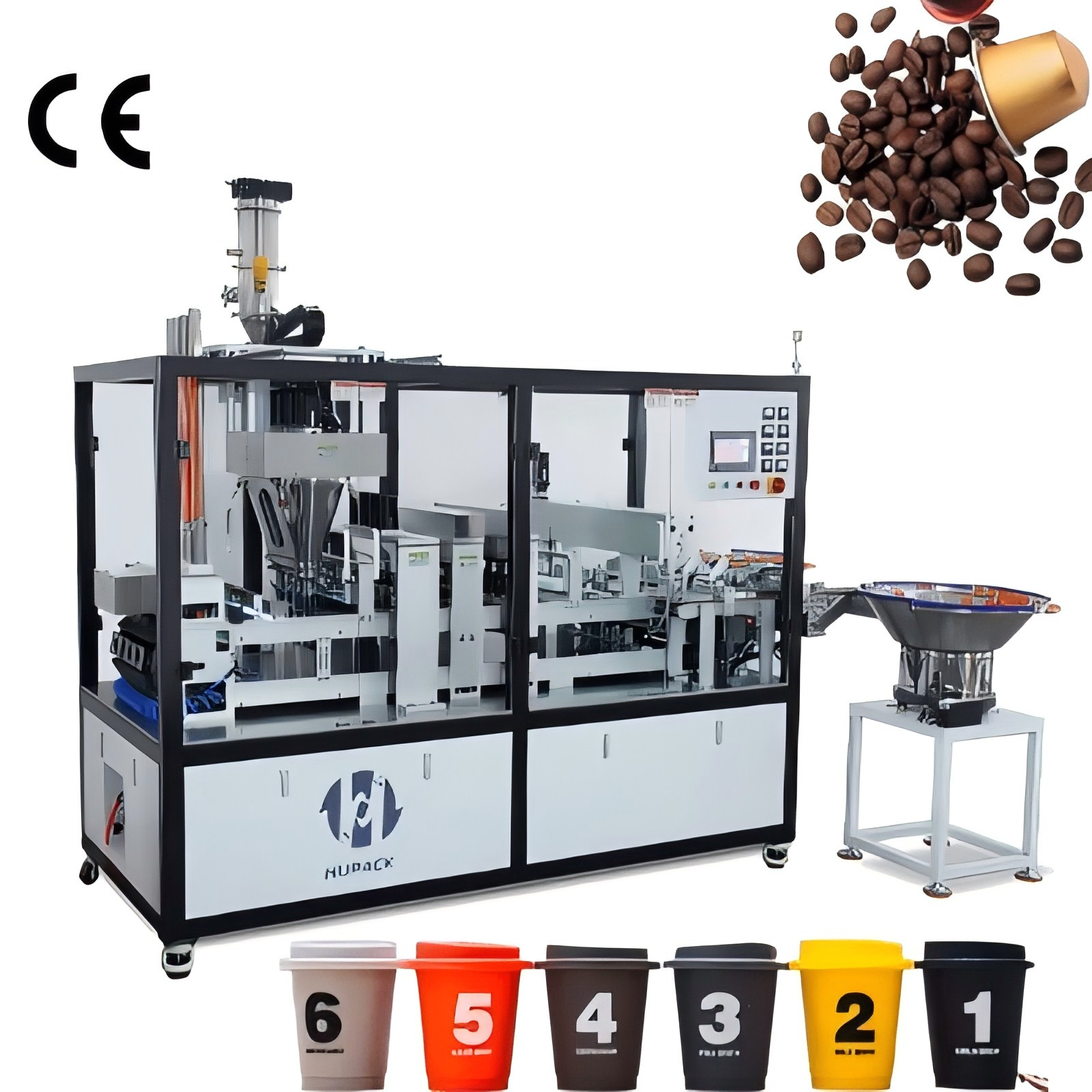

CF240 Multifunctional Coffee Capsule 4 lanes Sealing Machine
Outer Diameter: 37-54 mm Height: 28-50 mm Model: CF240 Productivity: 9600 pills/h Cup Size: Sealing Film: 37-54 mm Power Supply: 380V Main Motor Power: 1.5KW Total Power: 7KW Air Pressure: 0.6-0.8MPA Air Consumption: 0.8 m³/h Dimensions: 3500×950×1800 mm Weight: 2000 KG
|  |
How a Nespresso Filling Machine Handles Capsule Filling and Sealing
A nespresso filling machine begins by feeding and positioning empty capsules in dedicated holders. The nespresso pod filling machine then measures and deposits ground coffee through a servo-controlled dosing system, helping keep the filling error below 0.1 g. Nitrogen is flushed into the capsule to reduce oxygen exposure before a pre-cut lid is positioned on the rim. The coffee capsule sealing machine applies controlled heat and pressure to form a secure seal. Sensors monitor capsule and lid presence throughout the process, reducing empty fills, missing lids, and unnecessary production interruptions.
Key Challenges for a Nespresso Capsule Filler in Capsule Production
The main challenges include inconsistent coffee weight, powder contamination on capsule rims, weak seals, lid misalignment, and loss of aroma before sealing. Coffee density, grind size, moisture, and flowability can all affect the performance of a nespresso capsule filler. Reliable nespresso pod fillers should therefore combine accurate dosing, stable capsule positioning, nitrogen flushing, and controlled sealing temperature and pressure. Buyers should also test their actual coffee, capsules, and lids before production, because even a well-designed filling system requires correct settings for each material combination and target filling weight.
Which Nespresso Capsule Filling Machine Is Right for You?
Choose a nespresso capsule filling machine according to required hourly output, capsule dimensions, coffee characteristics, sealing-lid material, factory utilities, and future expansion plans. HIJPACK lists models ranging from approximately 2,400 to 9,600 capsules per hour, including single-head, double-head, two-lane, and four-lane configurations. Smaller brands may prioritize compact operation and flexible changeovers, while established producers may need a faster nespresso coffee capsule filling machine with multiple lanes. Before purchasing, provide capsule samples, lids, target dose, and coffee powder for testing so the final configuration matches real production conditions.
